Overview

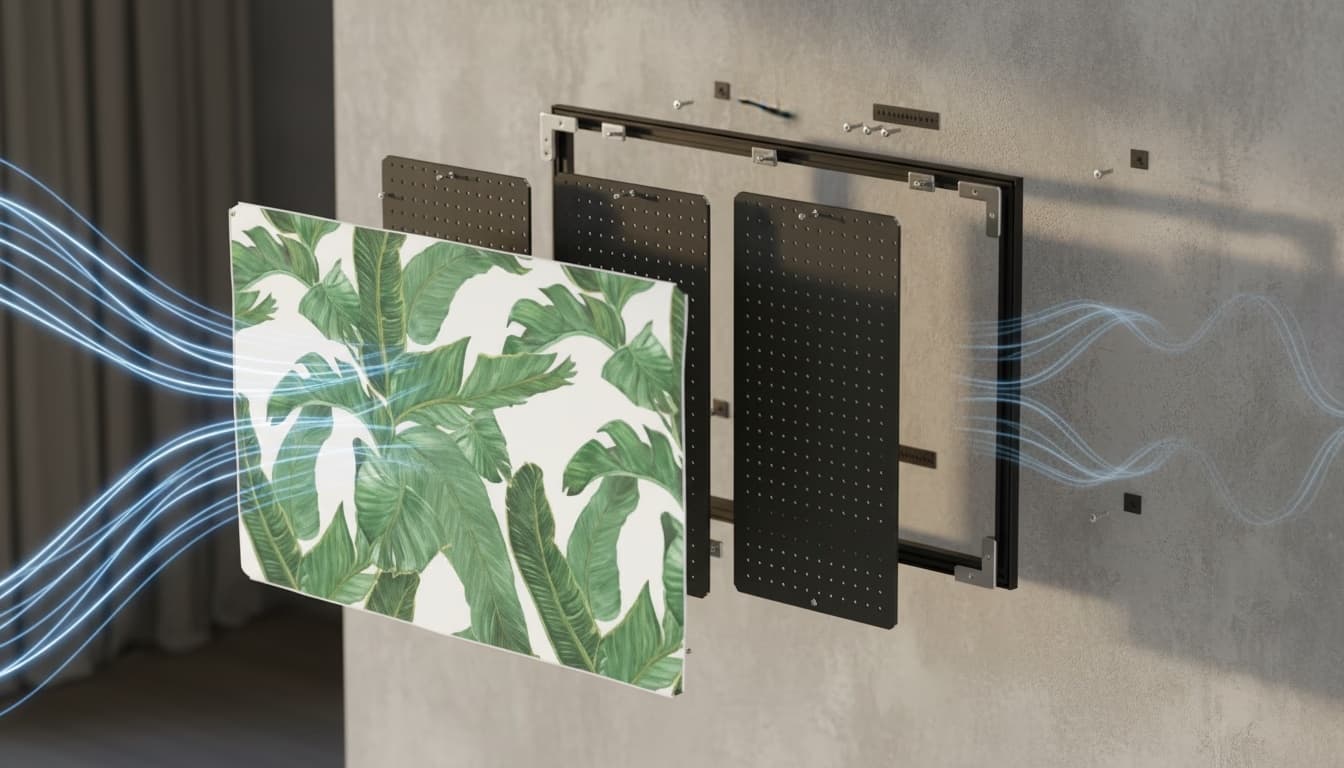

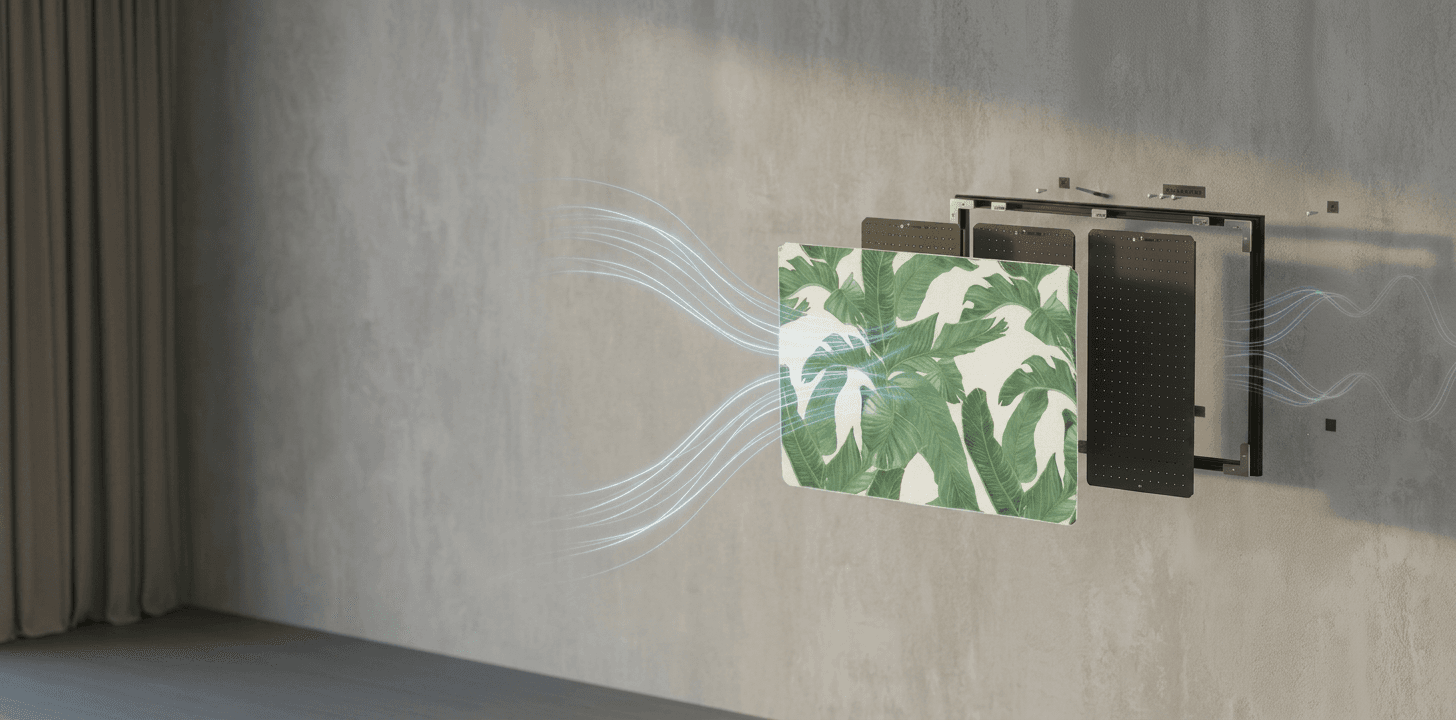

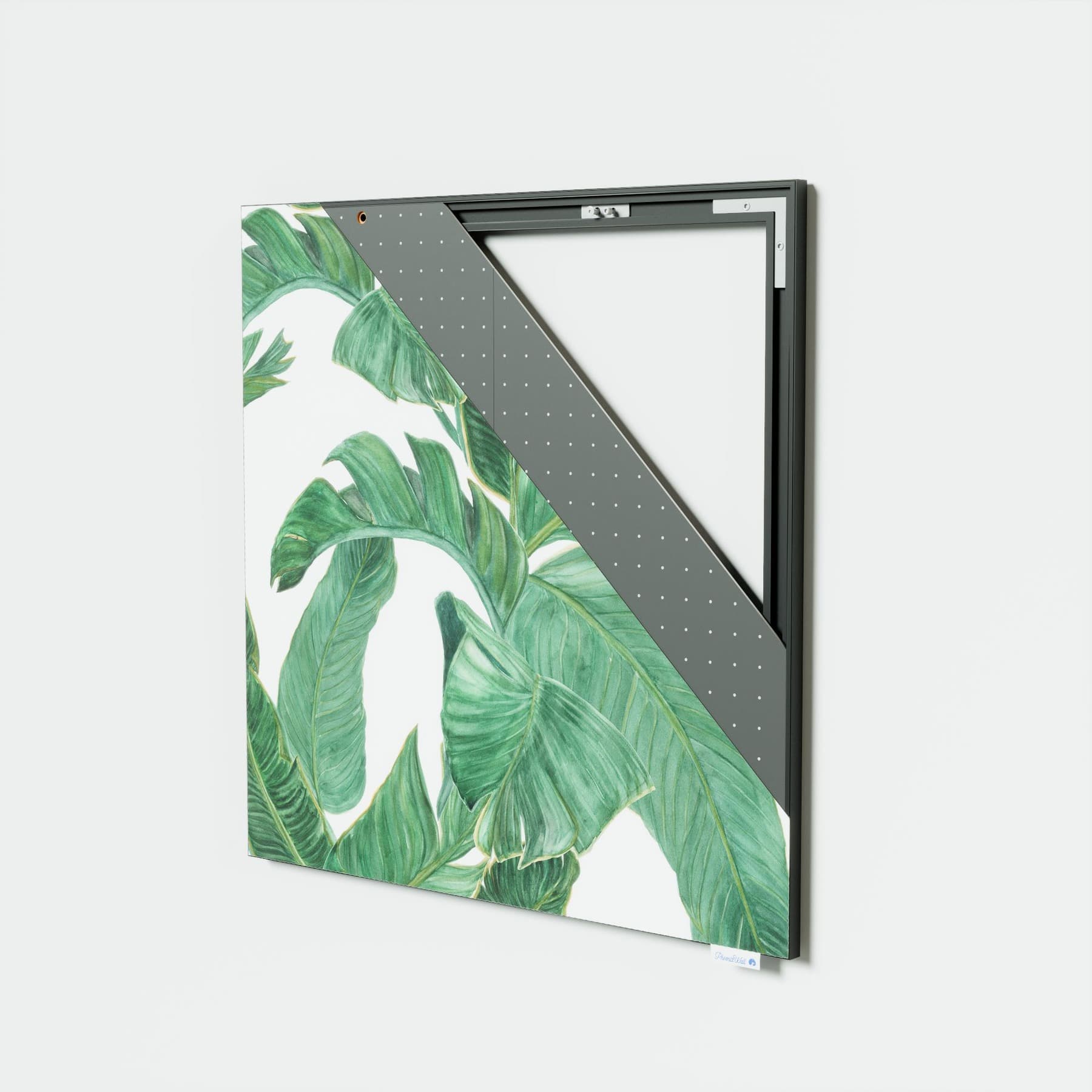

Phoenix Wall's acoustic panels are engineered to deliver measurable sound performance without the visual bulk of traditional treatment. Each panel integrates directly into the magnetic frame system, creating a seamless surface that controls reverberation, flutter echo, and low-frequency buildup.
The acoustic core is constructed from a high-density mineral wool substrate, selected for its combination of absorption performance and dimensional stability. With an NRC rating of 0.75 or greater across the mid-frequency range, a full installation can reduce reverberation time by up to 60%. Every panel achieves Class A fire resistance under EN 13501-1, satisfying the requirements of commercial and hospitality specifications.
Key Features
What sets it apart.
- NRC rating 0.75 or greater
- Up to 60% reverberation reduction
- Class A fire-rated construction
- No separate acoustic hardware needed
- Fully integrated with SEG fabric system
- Available in all standard frame sizes
Technical Specifications
The details.
NRC Rating0.75+ (mid-frequency)
Fire RatingClass A — EN 13501-1
Core MaterialHigh-density mineral wool
Panel Thickness50mm / 75mm acoustic cores
Reverberation ReductionUp to 60% RT60 improvement
Frequency Range250Hz – 4kHz optimised
Edge DetailFabric-wrapped (SEG compatible)
CertificationISO 354 / EN ISO 11654
